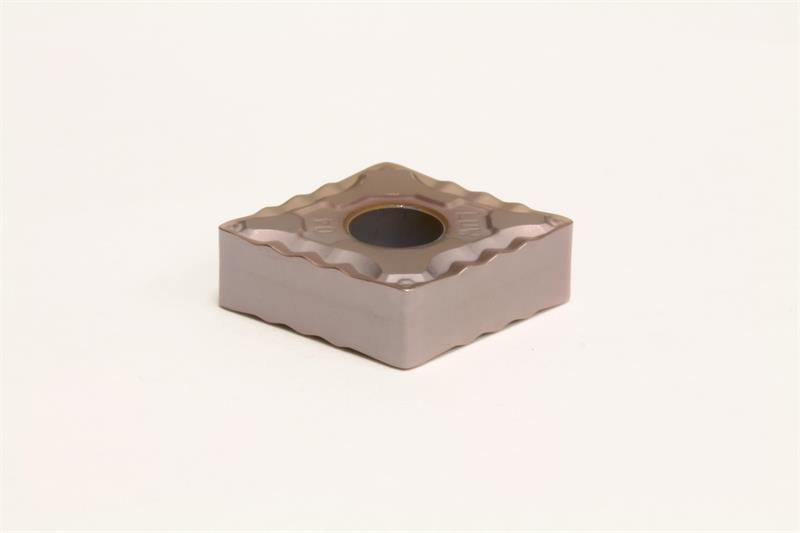

CNMG433 ELUW T2000Z Grade, Cermet, TiN/AIN Coated, Turning Insert

  • Item Code: CNMG433ELUW T2000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Grade T2000Z
Included Angle 80
Number of Edges 4
Shape Diamond
Chipbreaker Type ELU
Coating/Finish Cermet
Insert Size 433
Rake Angle 10 Degree
Brand Sumitomo
Corner Radius 0.0469 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style CNMG
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
