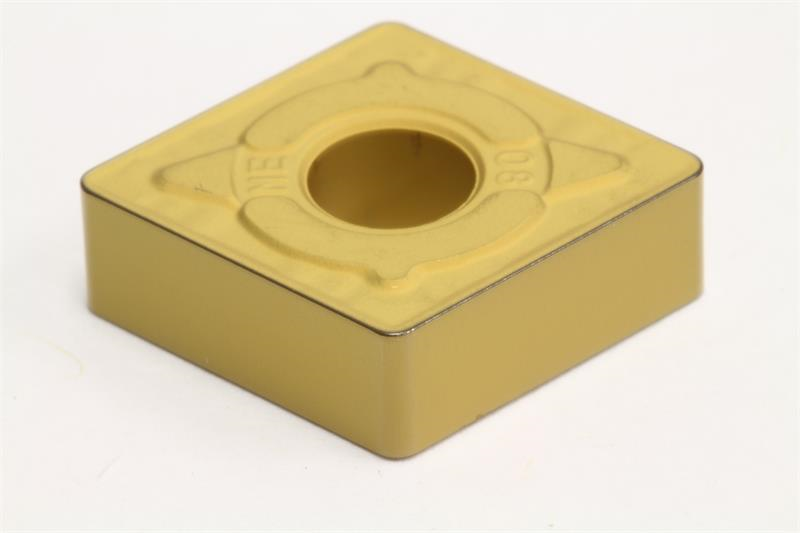

CNMG433 EME AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG433EME-AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
    • Applicable Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel

Tech Specs

Back To Top
Corner Radius 0.0469 Inch
Insert Type Negative
Rake Angle 4°
Relief Angle 0°
Insert Size 433
Material Solid Carbide
Brand Sumitomo
Chipbreaker Type EME
Mounting Hole Diameter 0.2031 Inch
Product Group Turning Insert
Coating/Finish CVD
Grade AC820P
Insert Style CNMG
Included Angle 80
Inscribed Circle 0.5000 Inch
No. of Edges 4
Shape Diamond
Thickness 0.1875 Inch
