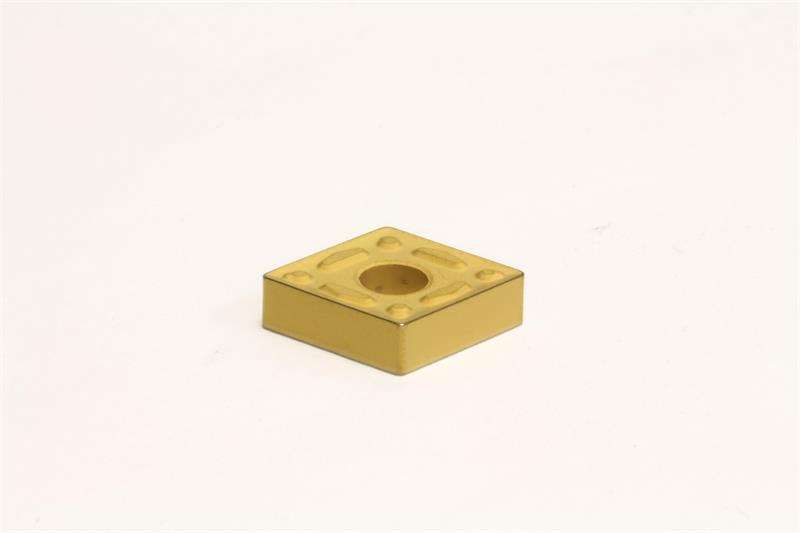

CNMG433 ENG AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG433ENG AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ENG
Grade AC820P
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Insert Type Negative
Brand Sumitomo
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0469 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Rake Angle 4 Degree
Insert Size 433
Material Solid Carbide
Included Angle 80
Number of Edges 4
Shape Diamond
