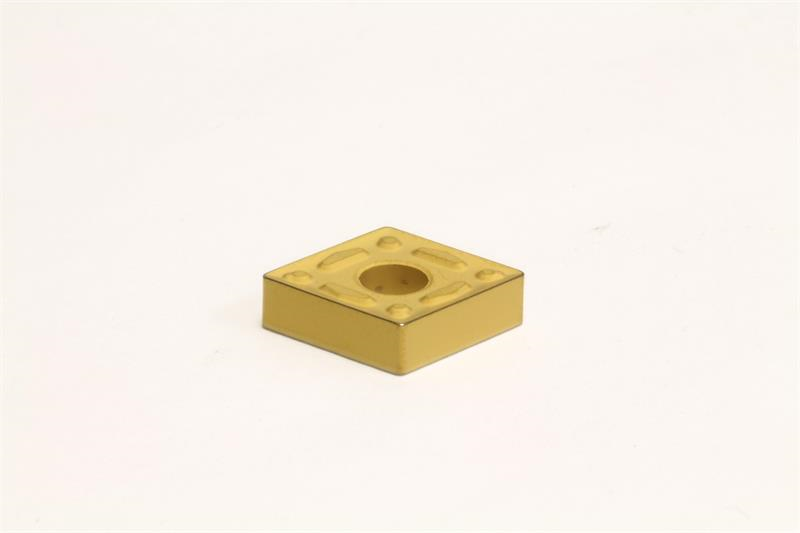

CNMG433 ENG AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG433ENG AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Rake Angle 4 Degree
Shape Diamond
Included Angle 80
Product Name Turning Insert
Thickness 0.1875 Inch
Grade AC830P
Number of Edges 4
Chipbreaker Type ENG
Insert Size 433
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Brand Sumitomo
Corner Radius 0.0469 Inch
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
