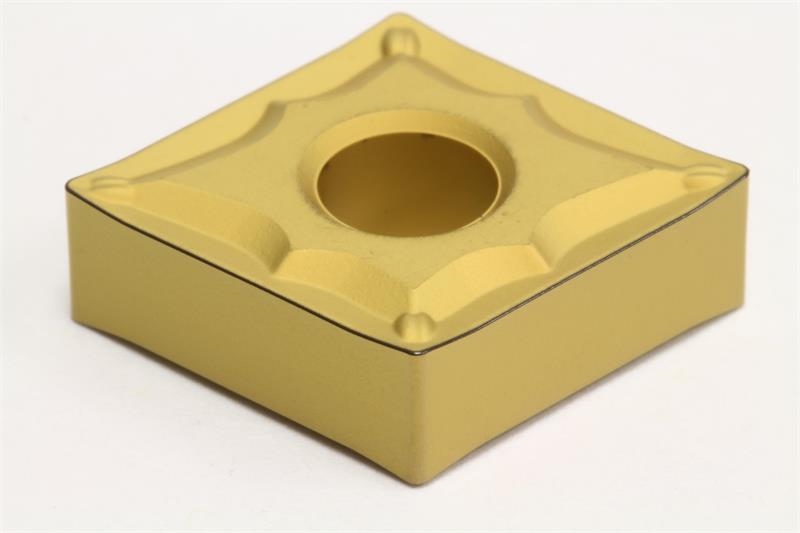

CNMG433 ESU AC700G Grade, Carbide, TIC Coated, Turning Insert

  • Item Code: CNMG433ESU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC700G
Shape Diamond
Thickness 0.1875 Inch
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Included Angle 80
Rake Angle 13 Degree
Chipbreaker Type ESU
Number of Edges 4
Product Name Turning Insert
Coating/Finish Coated
Corner Radius 0.4690 Inch
Insert Size 433
Material Solid Carbide
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
