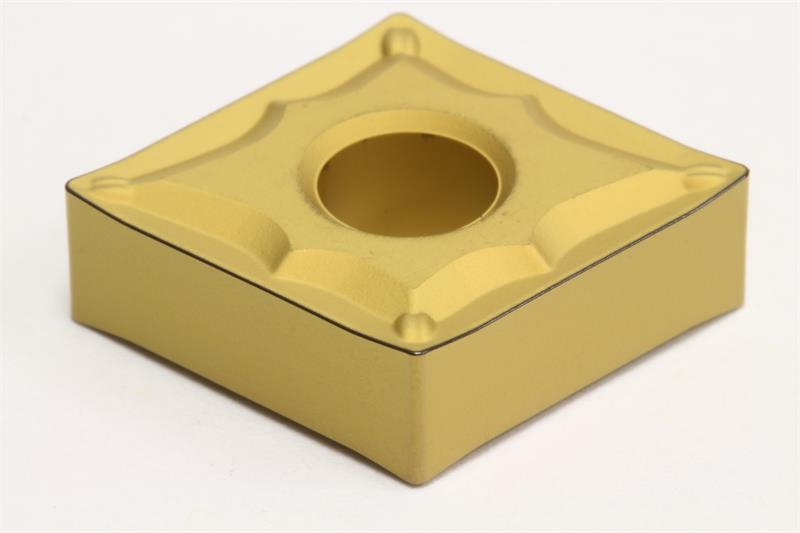

CNMG433 ESU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG433ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Number of Edges 4
Coating/Finish CVD
Insert Size 433
Material Solid Carbide
Corner Radius 0.4690 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Rake Angle 13 Degree
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 80
Insert Style CNMG
Inscribed Circle 0.5000 Inch
Insert Type Negative
Shape Diamond
Brand Sumitomo
Chipbreaker Type ESU
Grade AC820P
Product Name Turning Insert
