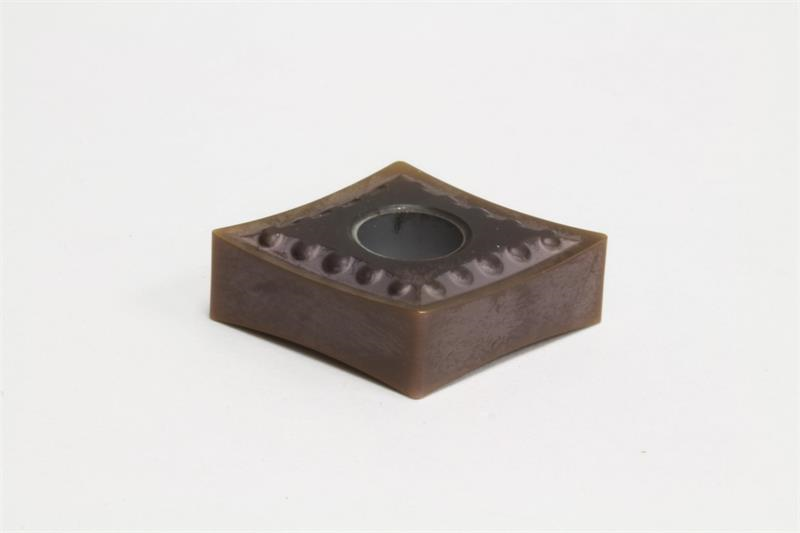

CNMG433 EUP AC520U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: CNMG433EUP AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 80
Insert Size 433
Material Solid Carbide
Corner Radius 0.0469 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Chipbreaker Type EUP
Product Name Turning Insert
Thickness 0.1875 Inch
Number of Edges 4
Rake Angle 10 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Insert Style CNMG
Insert Type Negative
Grade AC520U
Inscribed Circle 0.5000 Inch
Shape Diamond
