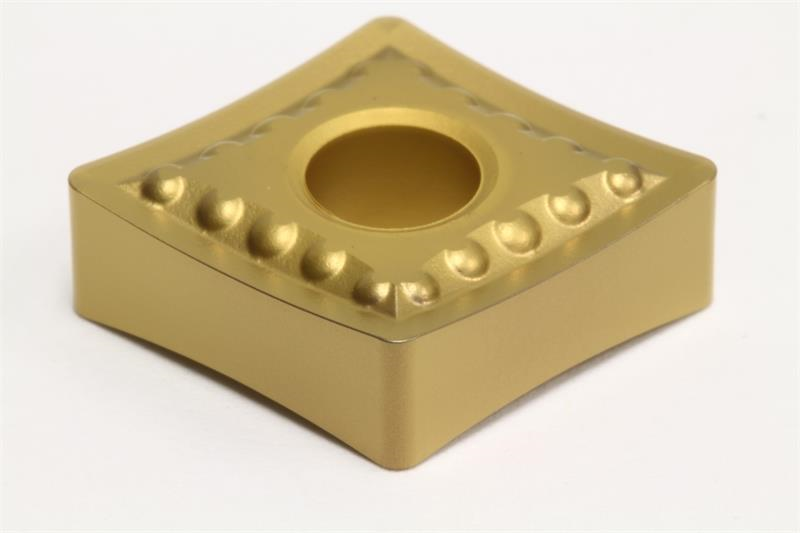

CNMG433 EUP AC630M Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG433EUP AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Shape Diamond
Rake Angle 10 Degree
Brand Sumitomo
Chipbreaker Type EUP
Corner Radius 0.0469 Inch
Included Angle 80
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade AC630M
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Insert Size 433
Material Solid Carbide
Insert Style CNMG
Number of Edges 4
Product Name Turning Insert
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
