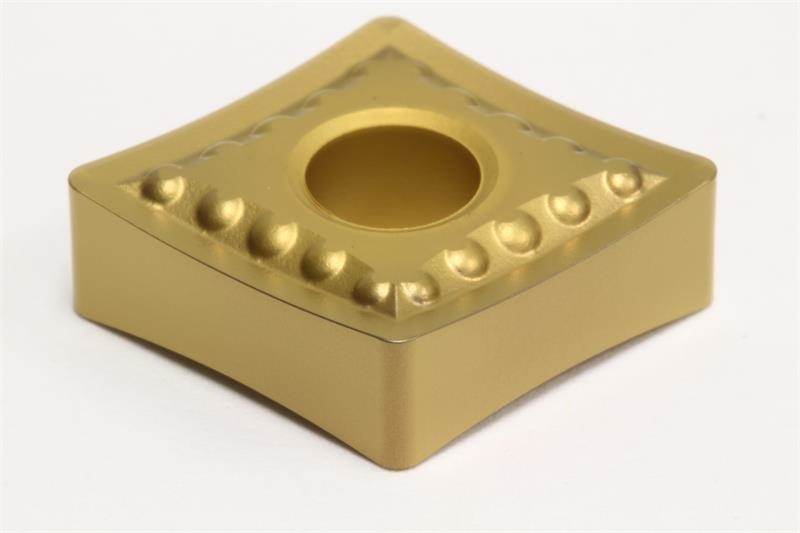

CNMG433 EUP AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG433EUP AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Chipbreaker Type EUP
Grade AC820P
Included Angle 80
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Insert Type Negative
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Number of Edges 4
Rake Angle 10 Degree
Corner Radius 0.0469 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Insert Size 433
Material Solid Carbide
Coating/Finish CVD
