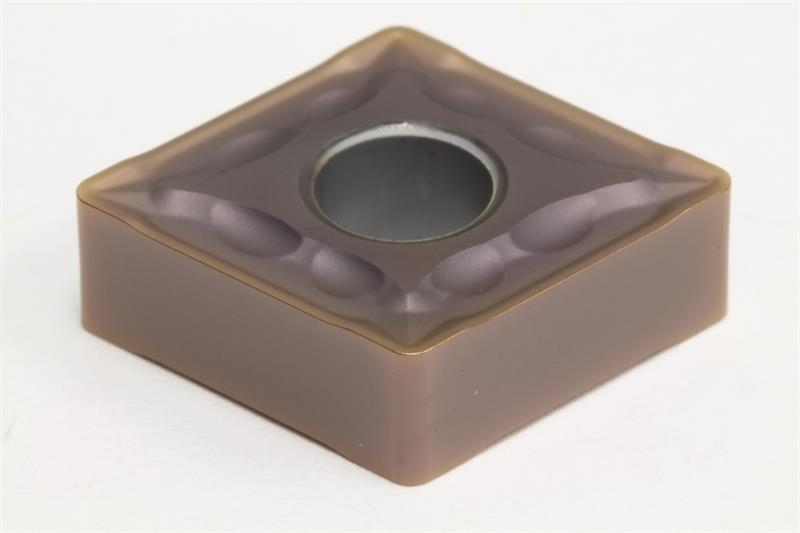

CNMG434 EMU AC530U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: CNMG434EMU AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 80
Shape Diamond
Chipbreaker Type EMU
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Corner Radius 0.0625 Inch
Insert Type Negative
Grade AC530U
Rake Angle 4 Degree
Relief Angle 0 Degree
Brand Sumitomo
Inscribed Circle 0.5000 Inch
Insert Size 434
Insert Style CNMG
Mounting Hole Diameter 0.2031 Inch
Number of Edges 4
Material Solid Carbide
