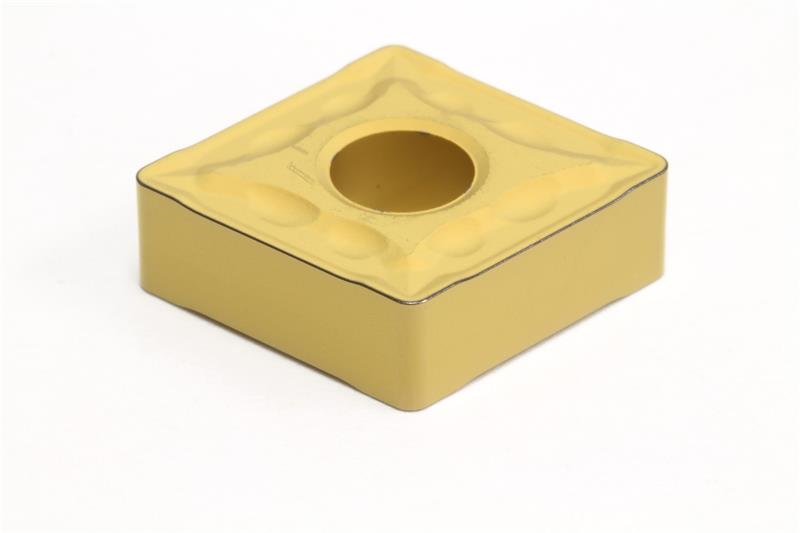

CNMG542 EMU AC700G Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: CNMG542EMU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC700G
Included Angle 80
Material Solid Carbide
Brand Sumitomo
Coating/Finish Coated
Insert Type Negative
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Size 542
Insert Style CNMG
Mounting Hole Diameter 0.2500 Inch
Rake Angle 4 Degree
Product Name Turning Insert
Chipbreaker Type EMU
Number of Edges 4
Thickness 0.2500 Inch
Corner Radius 0.0313 Inch
Inscribed Circle 0.6250 Inch
Shape Diamond
