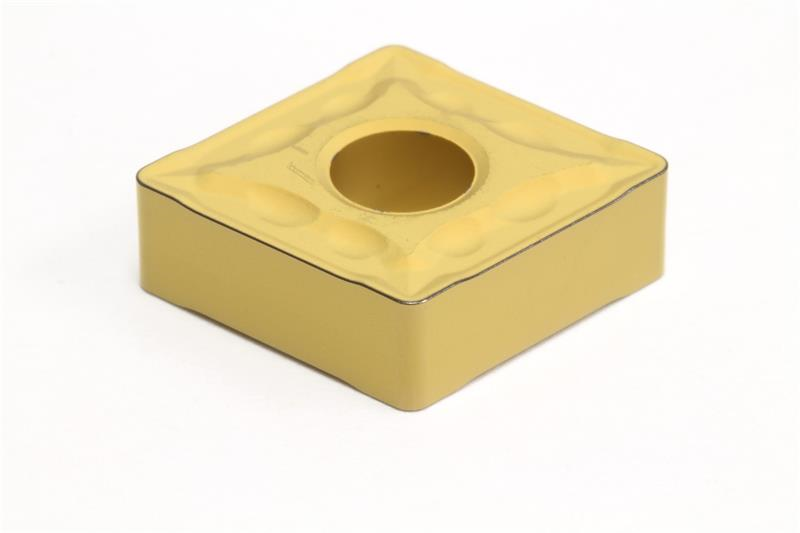

CNMG542 EMU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG542EMU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Brand Sumitomo
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Insert Size 542
Rake Angle 4 Degree
Included Angle 80
Insert Type Negative
Relief Angle 0 Degree
Chipbreaker Type EMU
Thickness 0.2500 Inch
Grade AC820P
Insert Style CNMG
Mounting Hole Diameter 0.2500 Inch
Product Name Turning Insert
Corner Radius 0.0313 Inch
Inscribed Circle 0.6250 Inch
Number of Edges 4
Shape Diamond
