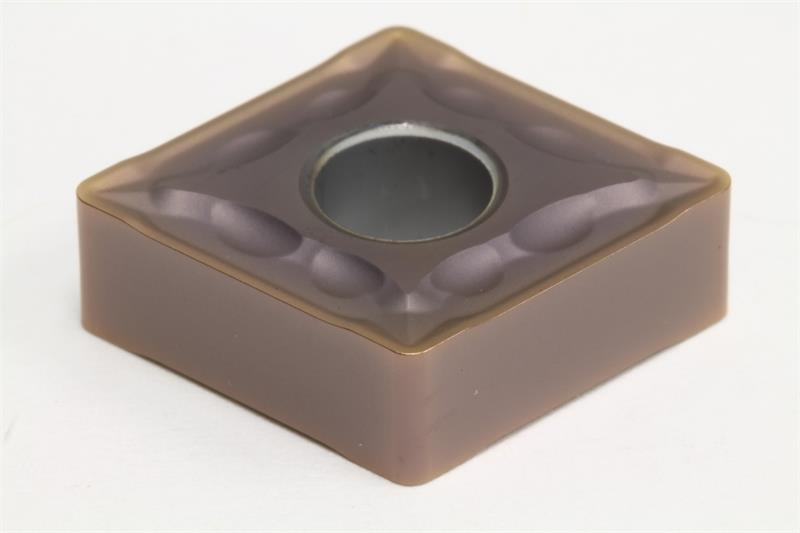

CNMG543 EMU AC520U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: CNMG543EMU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Thickness 0.2500 Inch
Chipbreaker Type EMU
Grade AC520U
Included Angle 80
Shape Diamond
Rake Angle 4 Degree
Coating/Finish PVD
Inscribed Circle 0.6250 Inch
Insert Style CNMG
Insert Type Negative
Mounting Hole Diameter 0.2500 Inch
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Size 543
Number of Edges 4
Corner Radius 0.0469 Inch
Material Solid Carbide
Brand Sumitomo
Product Name Turning Insert
