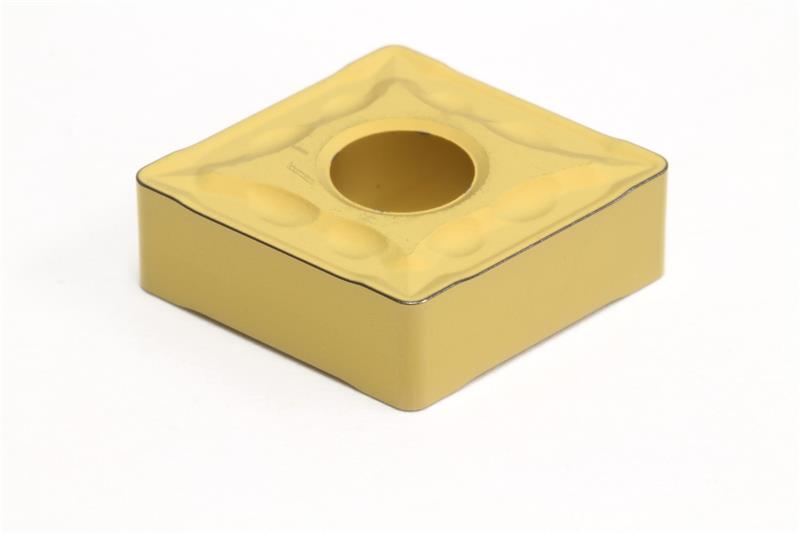

CNMG543 EMU AC700G Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: CNMG543EMU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EMU
Grade AC700G
Shape Diamond
Product Name Turning Insert
Coating/Finish Coated
Inscribed Circle 0.6250 Inch
Insert Style CNMG
Insert Type Negative
Mounting Hole Diameter 0.2500 Inch
Brand Sumitomo
Thickness 0.2500 Inch
Included Angle 80
Material Solid Carbide
Corner Radius 0.0469 Inch
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Rake Angle 4 Degree
Insert Size 543
Number of Edges 4
