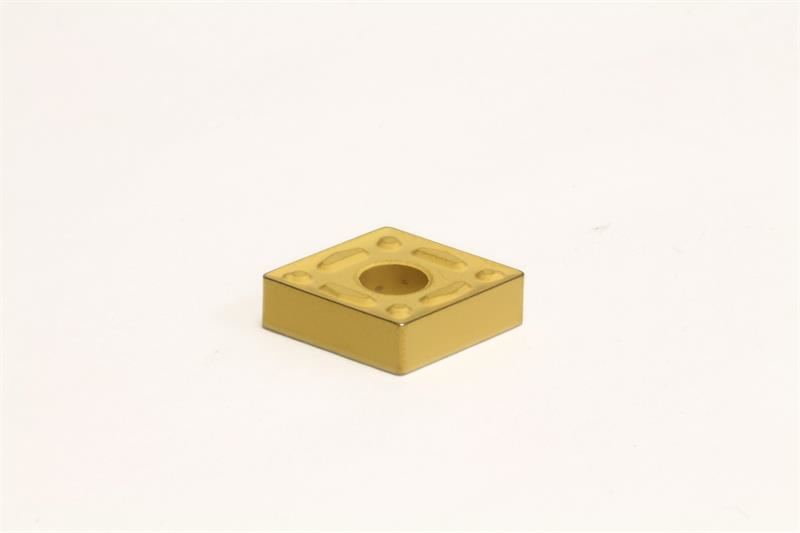

CNMG543 ENG AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG543ENG-AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type ENG
Included Angle 80
Inscribed Circle 0.6250 Inch
Insert Style CNMG
Insert Type Negative
Mounting Hole Diameter 0.2500 Inch
Brand Sumitomo
Corner Radius 0.0469 Inch
Grade AC830P
Thickness 0.2500 Inch
Shape Diamond
Product Name Turning Insert
Coating/Finish CVD
Rake Angle 4 Degree
Relief Angle 0 Degree
Material Solid Carbide
Insert Size 543
Number of Edges 4
