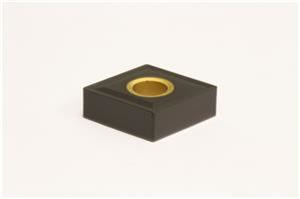

CNMG543 ENZ AC415K Grade, Carbide, Proprietary Coated, Turning Insert

  • Item Code: CNMG543ENZ-AC415K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Inscribed Circle 0.6250 Inch
Insert Size 543
Insert Type Negative
Shape Diamond
Chipbreaker Type ENZ
Coating/Finish CVD
Grade AC415K
Included Angle 80
Rake Angle 4 Degree
Material Solid Carbide
Corner Radius 0.0469 Inch
Insert Style CNMG
Mounting Hole Diameter 0.2500 Inch
Product Name Turning Insert
Number of Edges 4
Relief Angle 0 Degree
Thickness 0.2500 Inch
