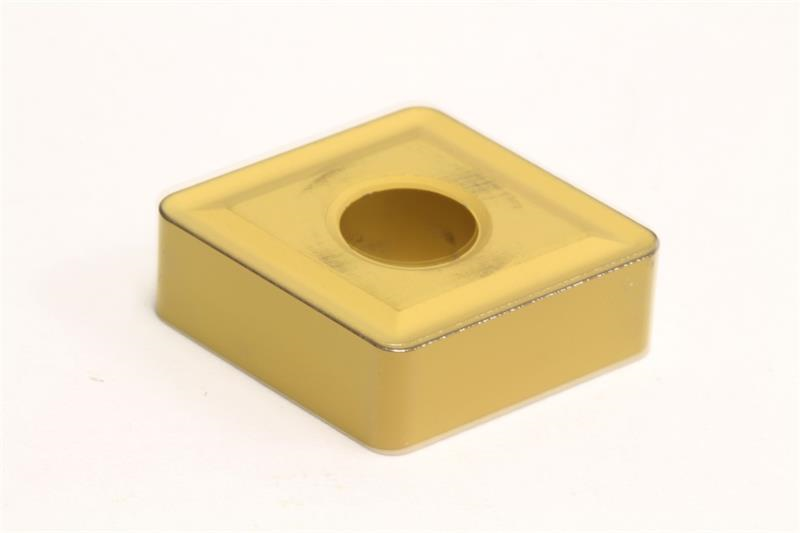

CNMG543 ENZ AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG543ENZ AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Type Negative
Material Solid Carbide
Coating/Finish CVD
Number of Edges 4
Thickness 0.2500 Inch
Chipbreaker Type ENZ
Rake Angle 4 Degree
Relief Angle 0 Degree
Corner Radius 0.0469 Inch
Grade AC820P
Insert Style CNMG
Mounting Hole Diameter 0.2500 Inch
Product Name Turning Insert
Inscribed Circle 0.6250 Inch
Insert Size 543
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Included Angle 80
