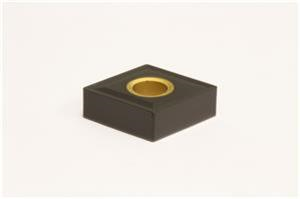

INSERT CNMG544ENZ SUMITOMO AC420K

  • Item Code: CNMG544ENZ-AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ENZ
Shape Diamond
Grade AC420K
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.6250 Inch
Insert Style CNMG
Insert Type Negative
Mounting Hole Diameter 0.2500 Inch
Brand Sumitomo
Thickness 0.2500 Inch
Corner Radius 0.0625 Inch
Number of Edges 4
Insert Size 544
Material Solid Carbide
Relief Angle 0 Degree
Coating/Finish CVD
Included Angle 80
Rake Angle 4 Degree
