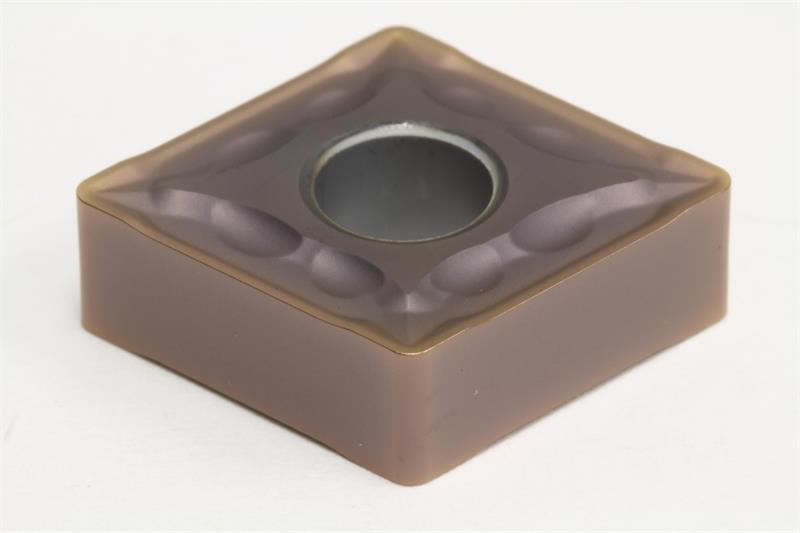

CNMG642 EMU AC520U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: CNMG642EMU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.3126 Inch
Shape Diamond
Brand Sumitomo
Included Angle 80
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Corner Radius 0.0313 Inch
Rake Angle 4 Degree
Grade AC520U
Inscribed Circle 0.7500 Inch
Insert Style CNMG
Number of Edges 4
Product Name Turning Insert
Insert Type Negative
Relief Angle 0 Degree
Chipbreaker Type EMU
Thickness 0.2500 Inch
Insert Size 642
Material Solid Carbide
