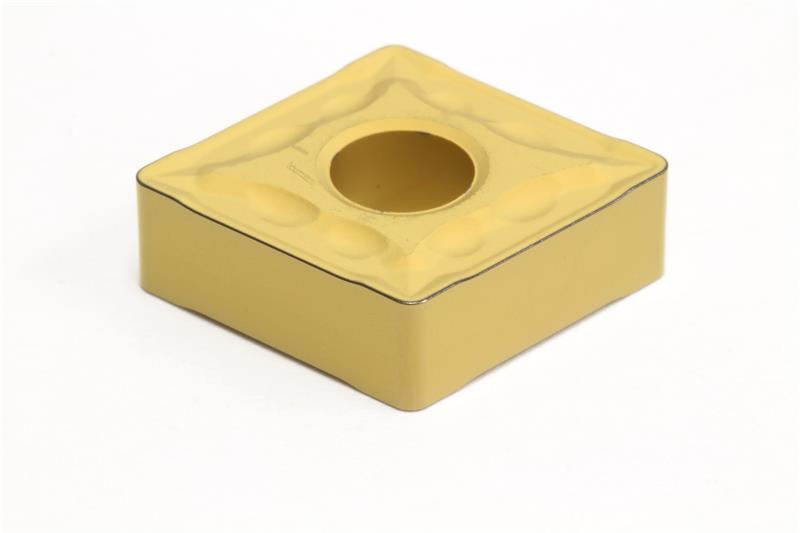

CNMG642 EMU AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG642EMU AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 642
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0313 Inch
Included Angle 80
Insert Style CNMG
Rake Angle 4 Degree
Brand Sumitomo
Mounting Hole Diameter 0.3126 Inch
Coating/Finish CVD
Shape Diamond
Material Solid Carbide
Chipbreaker Type EMU
Grade AC830P
Thickness 0.2500 Inch
Inscribed Circle 0.7500 Inch
Number of Edges 4
Product Name Turning Insert
Insert Type Negative
Relief Angle 0 Degree
