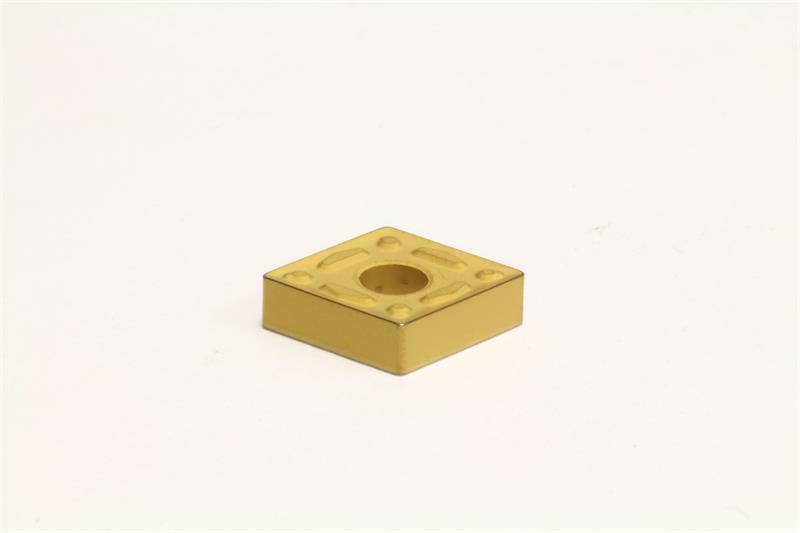

CNMG642 ENG AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG642ENG AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Corner Radius 0.0313 Inch
Rake Angle 4 Degree
Shape Diamond
Chipbreaker Type ENG
Grade AC830P
Inscribed Circle 0.7500 Inch
Insert Style CNMG
Thickness 0.2500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Number of Edges 4
Insert Type Negative
Relief Angle 0 Degree
Brand Sumitomo
Included Angle 80
Material Solid Carbide
Mounting Hole Diameter 0.3126 Inch
Insert Size 642
