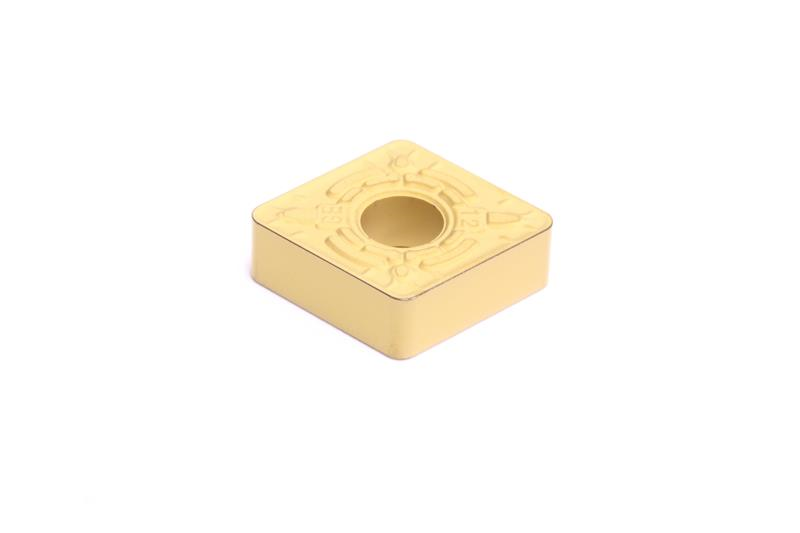

CNMG643 EGE AC830P Grade, Carbibe, AI2O3 Coated, Turning Insert

  • Item Code: CNMG643EGE AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EGE
Shape Diamond
Mounting Hole Diameter 0.3126 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style CNMG
Insert Type Negative
Number of Edges 4
Grade AC830P
Insert Size 643
Thickness 0.2500 Inch
Coating/Finish CVD
Material Solid Carbide
Rake Angle 3 Degree
Relief Angle 0 Degree
Brand Sumitomo
Corner Radius 0.0469 Inch
Included Angle 80
Inscribed Circle 0.7500 Inch
Product Name Turning Insert
