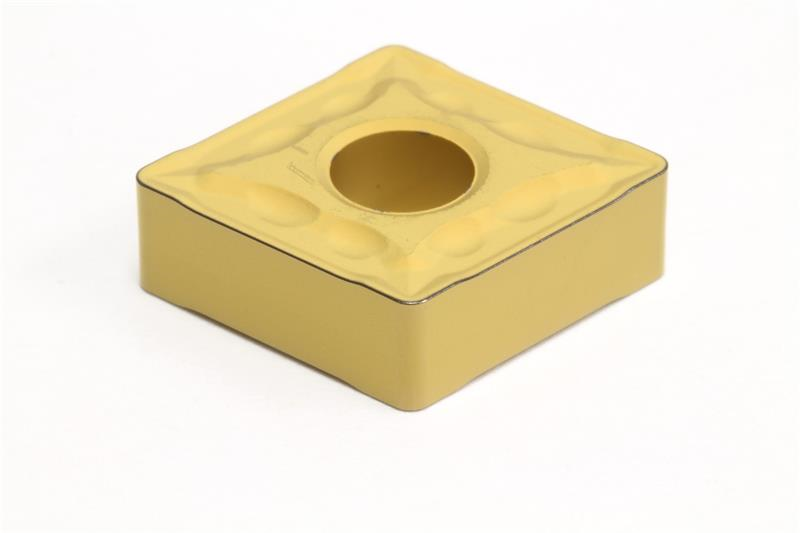

CNMG643 EMU AC700G Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: CNMG643EMU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0469 Inch
Relief Angle 0 Degree
Grade AC700G
Product Name Turning Insert
Material Solid Carbide
Mounting Hole Diameter 0.3126 Inch
Chipbreaker Type EMU
Included Angle 80
Coating/Finish Coated
Inscribed Circle 0.7500 Inch
Insert Style CNMG
Insert Type Negative
Brand Sumitomo
Insert Size 643
Thickness 0.2500 Inch
Number of Edges 4
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Rake Angle 4 Degree
