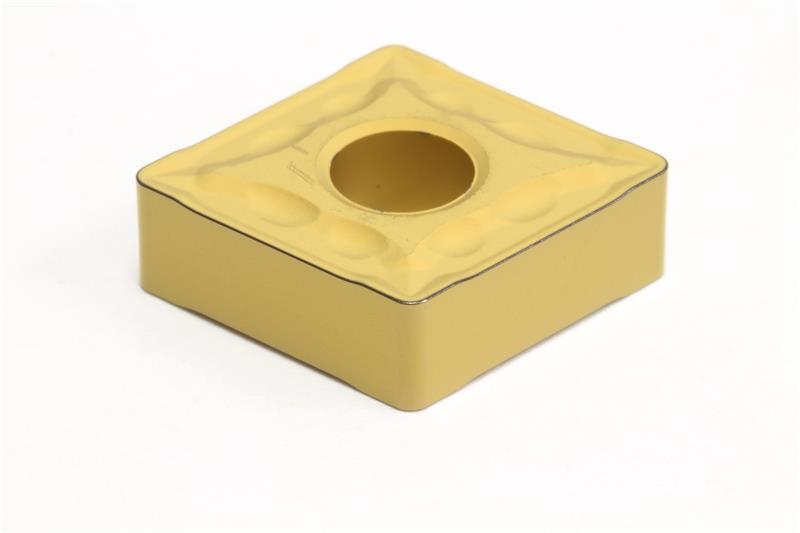

CNMG643 EMU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG643EMU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Type Negative
Material Solid Carbide
Grade AC820P
Inscribed Circle 0.7500 Inch
Number of Edges 4
Thickness 0.2500 Inch
Chipbreaker Type EMU
Included Angle 80
Product Name Turning Insert
Relief Angle 0 Degree
Shape Diamond
Brand Sumitomo
Insert Size 643
Mounting Hole Diameter 0.3126 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Corner Radius 0.0469 Inch
Insert Style CNMG
Rake Angle 4 Degree
