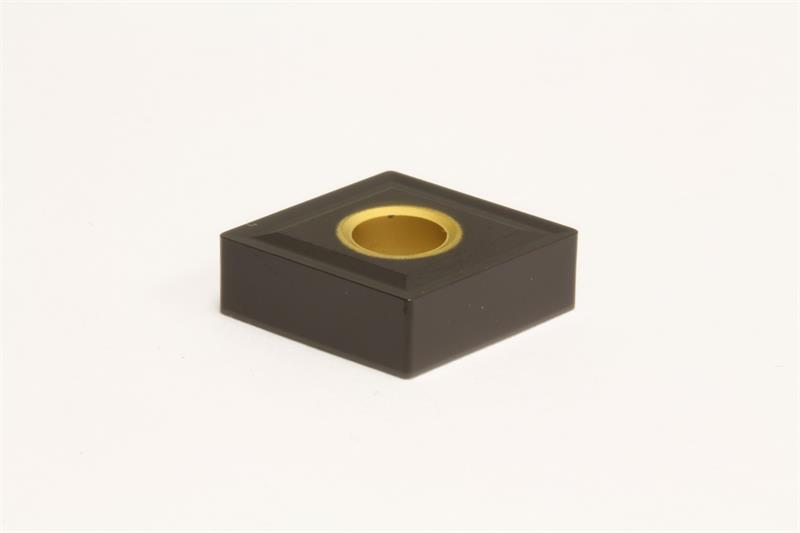

CNMG643 ENZ AC420K Grade, Carbide, Proprietary Coated, Turning Insert

  • Item Code: CNMG643ENZ AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC420K
Product Name Turning Insert
Relief Angle 0 Degree
Inscribed Circle 0.7500 Inch
Insert Style CNMG
Insert Type Negative
Thickness 0.2500 Inch
Insert Size 643
Number of Edges 4
Shape Diamond
Material Solid Carbide
Mounting Hole Diameter 0.3126 Inch
Brand Sumitomo
Corner Radius 0.0469 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type ENZ
Coating/Finish CVD
Included Angle 80
Rake Angle 4 Degree
