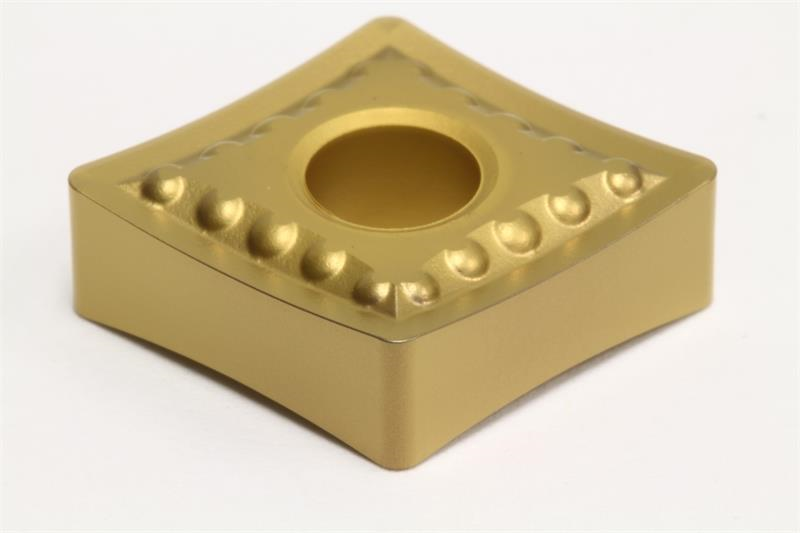

CNMG643 EUP AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG643EUP AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EUP
Material Solid Carbide
Mounting Hole Diameter 0.3126 Inch
Rake Angle 10 Degree
Brand Sumitomo
Corner Radius 0.0469 Inch
Insert Size 643
Insert Type Negative
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 80
Grade AC820P
Inscribed Circle 0.7500 Inch
Insert Style CNMG
Product Name Turning Insert
Thickness 0.2500 Inch
Number of Edges 4
Shape Diamond
