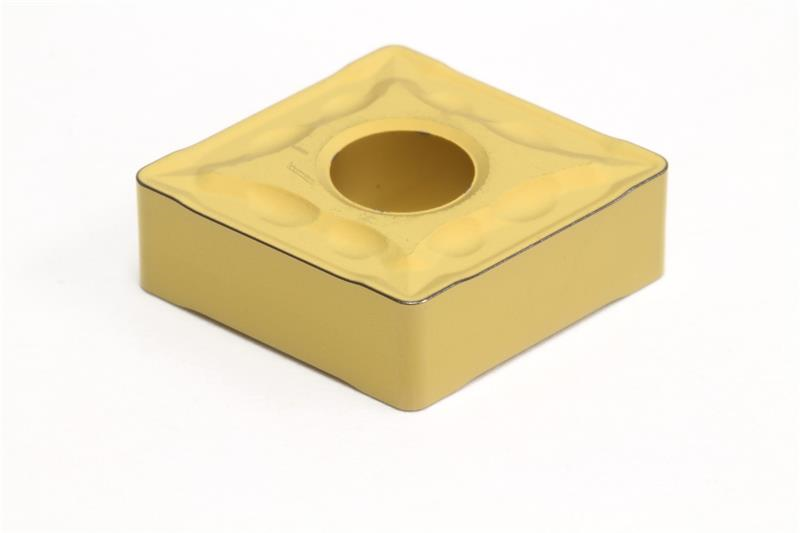

CNMG644 EMU AC700G Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: CNMG644EMU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.3126 Inch
Grade AC700G
Relief Angle 0 Degree
Brand Sumitomo
Chipbreaker Type EMU
Included Angle 80
Product Name Turning Insert
Inscribed Circle 0.7500 Inch
Number of Edges 4
Thickness 0.2500 Inch
Coating/Finish Coated
Insert Type Negative
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style CNMG
Rake Angle 4 Degree
Corner Radius 0.0625 Inch
Insert Size 644
Shape Diamond
