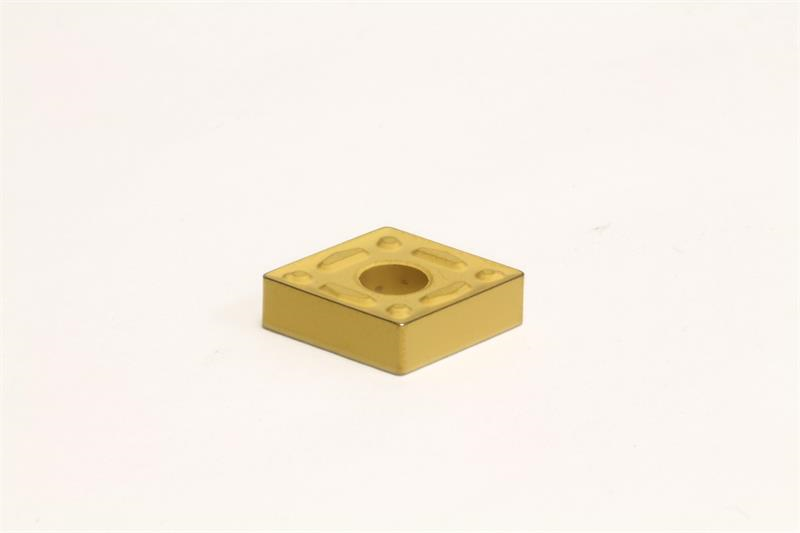

CNMG644 ENG AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMG644ENG AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 644
Brand Sumitomo
Relief Angle 0 Degree
Material Solid Carbide
Mounting Hole Diameter 0.3126 Inch
Inscribed Circle 0.7500 Inch
Insert Style CNMG
Insert Type Negative
Product Name Turning Insert
Included Angle 80
Thickness 0.2500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Rake Angle 4 Degree
Chipbreaker Type ENG
Grade AC830P
Corner Radius 0.0625 Inch
Number of Edges 4
Shape Diamond
