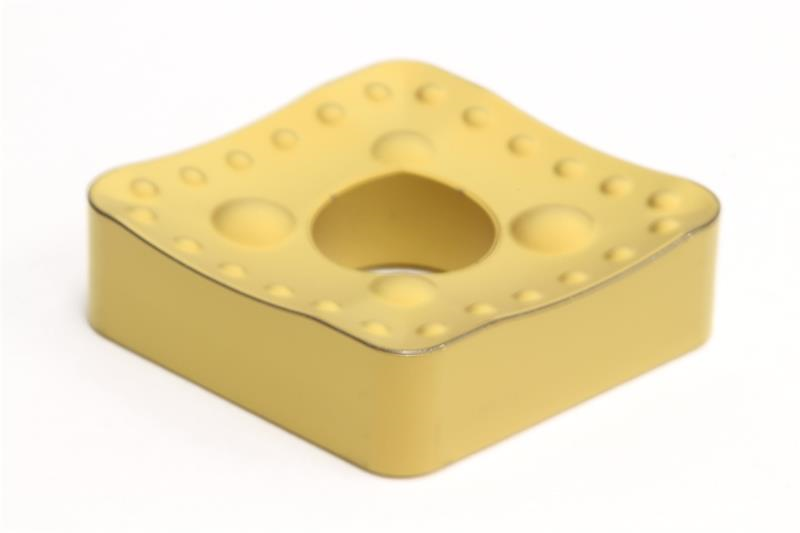

CNMM432 EHG AC810P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMM432EHG AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style CNMM
Chipbreaker Type EHG
Coating/Finish CVD
Material Solid Carbide
Number of Edges 4
Corner Radius 0.0313 Inch
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Grade AC810P
Product Name Turning Insert
Rake Angle 0 Degree
Inscribed Circle 0.5000 Inch
Insert Type Negative
Shape Diamond
Included Angle 80
Thickness 0.1875 Inch
