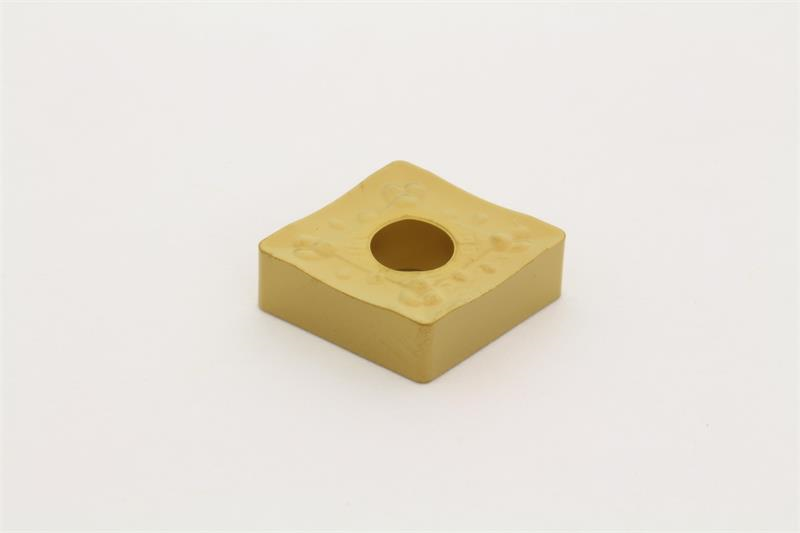

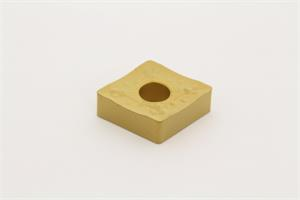

CNMM643 EHG AC810P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CNMM643EHG AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EHG
Corner Radius 0.0469 Inch
Relief Angle 0 Degree
Brand Sumitomo
Insert Size 643
Insert Style CNMM
Product Name Turning Insert
Rake Angle 0 Degree
Material Solid Carbide
Inscribed Circle 0.6250 Inch
Shape Diamond
Grade AC810P
Thickness 0.2500 Inch
Mounting Hole Diameter 0.3126 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Coating/Finish CVD
Included Angle 80
