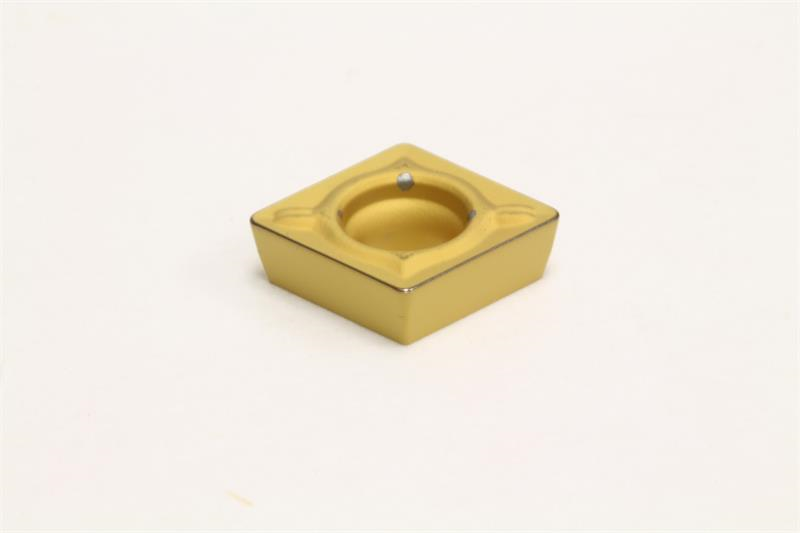

CPMT21.51 ESU AC700G Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: CPMT21.51ESU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish Coated
Insert Type Positive
Relief Angle 11 Degree
Brand Sumitomo
Chipbreaker Type ESU
Thickness 0.0940 Inch
Grade AC700G
Inscribed Circle 0.2500 Inch
Insert Style CPMT
Product Name Turning Insert
Insert Size 21.51
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 80
Rake Angle 8 Degree
Corner Radius 0.0156 Inch
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Shape Diamond
