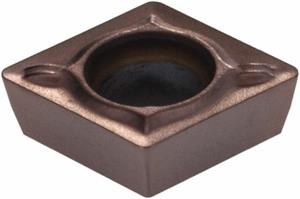

CPMT21.51 ESU T2000Z Grade, Cermet, Proprietary Coated, Turning Insert

  • Item Code: CPMT2151ESU T2000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Grade T2000Z
Inscribed Circle 0.2500 Inch
Shape Diamond
Coating/Finish Cermet
Corner Radius 0.0156 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0940 Inch
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Rake Angle 8 Degree
Insert Style CPMT
Insert Type Positive
Included Angle 80
Insert Size 21.51
Brand Sumitomo
Chipbreaker Type ESU
Product Name Turning Insert
Relief Angle 11 Degree
