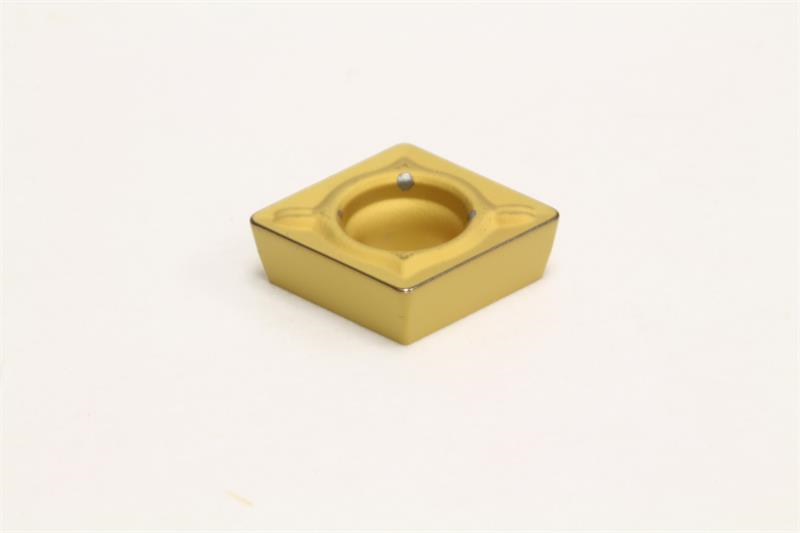

CPMT32.51 ESU AC700G Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: CPMT32.51ESU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC700G
Shape Diamond
Corner Radius 0.0156 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish Coated
Thickness 0.0156 Inch
Number of Edges 4
Rake Angle 8 Degree
Material Solid Carbide
Inscribed Circle 0.3750 Inch
Insert Size 32.51
Insert Style CPMT
Insert Type Positive
Brand Sumitomo
Chipbreaker Type ESU
Included Angle 80
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
Relief Angle 11 Degree
