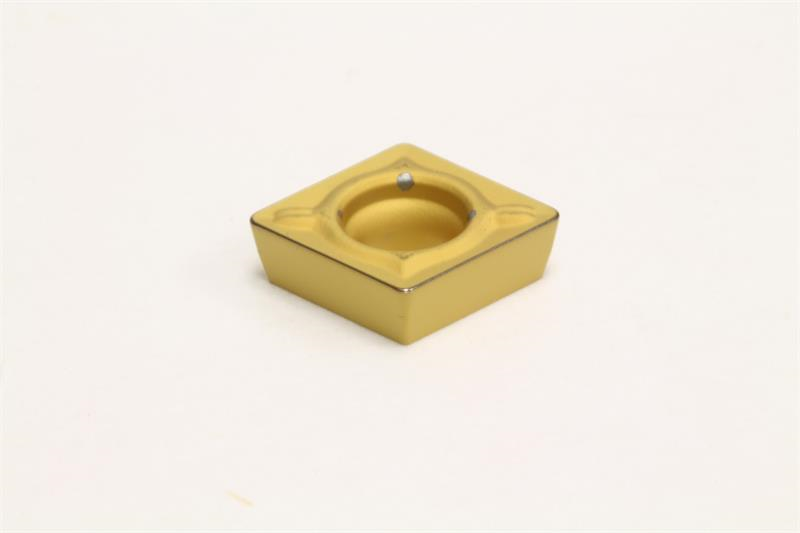

CPMT32.51 ESU AC810P Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: CPMT32.51ESU AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style CPMT
Product Name Turning Insert
Shape Diamond
Chipbreaker Type ESU
Coating/Finish CVD
Grade AC810P
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Number of Edges 4
Relief Angle 11 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Rake Angle 8 Degree
Brand Sumitomo
Corner Radius 0.0156 Inch
Inscribed Circle 0.3750 Inch
Insert Size 32.51
Included Angle 80
Material Solid Carbide
