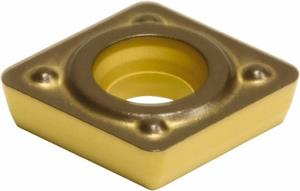

CPMT32.52 ENX AC630M Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CPMT32.52ENX AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Number of Edges 4
Relief Angle 11 Degree
Material Solid Carbide
Grade AC630M
Included Angle 80
Insert Size 32.52
Insert Style CPMT
Product Name Turning Insert
Brand Sumitomo
Chipbreaker Type ENS
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Corner Radius 0.0156 Inch
Inscribed Circle 0.3750 Inch
Rake Angle 10 Degree
Shape Diamond
