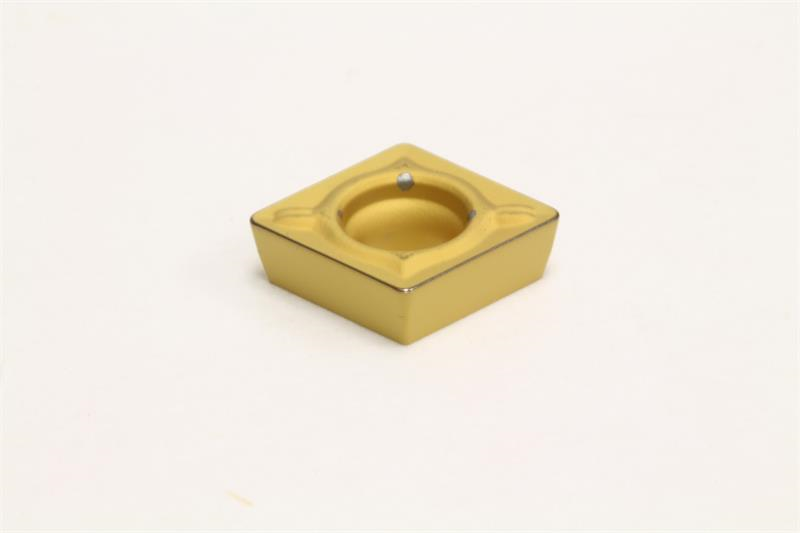

CPMT322 ESU AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: CPMT322ESU-AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 322
Product Name Turning Insert
Corner Radius 0.0313 Inch
Shape Diamond
Grade AC830P
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Relief Angle 11 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 80
Number of Edges 4
Insert Style CPMT
Thickness 0.1250 Inch
Inscribed Circle 0.3750 Inch
Rake Angle 8 Degree
Material Solid Carbide
Brand Sumitomo
Chipbreaker Type ESU
