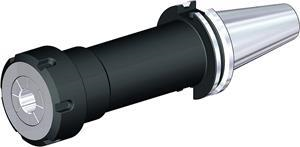

5.00 mm ER16 CAT40 Single-Angle Collet Chuck

  • Item Code: CV40BER16500
  • Brand: Widia-Hanita
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Overall Length (mm) 195.25 mm
Overall Length (in.) 7.6870"
Coolant Hole Diameter (in.) 0.5366"
Adapter/Shank/Bore Dia (in.) 1.7500"
Coolant Thru Yes
Brand Widia-Hanita
Coolant Hole Diameter (mm) 13.63 mm
Series CV40
Adapter/Shank/Bore Dia (mm) 44.45 mm
Shank Type Taper Shank
