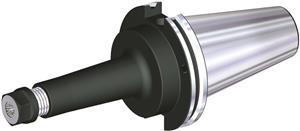

0.02 to 0.5118 Inch Collet Capacity, 2.5 Inch Projection, CAT40 Taper Shank, Series ER20 Collet Chuck
- Item Code: CV40BER20250
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER20
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Adjustment Range | 1.7300 Inch |
|---|---|
| Body Diameter | 1.3386 Inch |
| Clamping Length | 1.4200 Inch |
| Gage Length | 2.5000 Inch |
| Overall Length | 5.1870 Inch |
| Usable Length | 1.7500 Inch |
| Product Name | Collet Chucks |
| Shank Diameter | 1.7500 Inch |
| Shank Style | Taper |
| Shank Length | 2.6800 Inch |
| Brand | WIDIA-Erickson |
| Flange Length | 19.05 MM |
| Hand of Tool | Neutral |
| Nut Diameter | 1.3400 Inch |
