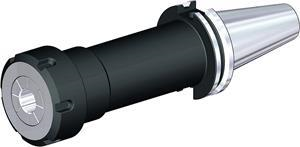

2.50 mm ER25 CAT40 Single-Angle Collet Chuck

  • Item Code: CV40BER25250
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Gage Length (mm) 63.50 mm
Gage Length (in.) 2.5000"
Overall Length (in.) 5.1870"
Brand Widia-Erickson
Clamping Hole Length (in.) 0.5365"
Coolant Thru Yes
Adapter/Shank/Bore Dia (mm) 44.45 mm
Collet Series ER25
Lock Nut Dia. (mm) 42.00 mm
Lock Nut Dia. (in.) 1.6535"
Clamping Hole Length (mm) 13.63 mm
Overall Length (mm) 131.75 mm
Adapter/Shank/Bore Dia (in.) 1.7500"
