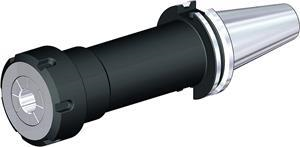

6.00 mm ER25 CAT40 Single-Angle Collet Chuck

  • Item Code: CV40BER25600
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Gage Length (mm) 152.40 mm
Adapter/Shank/Bore Dia (mm) 44.45 mm
Collet Series ER25
Clamping Hole Length (mm) 13.63 mm
Gage Length (in.) 6.0000"
Adapter/Shank/Bore Dia (in.) 1.7500"
Brand Widia-Erickson
Lock Nut Dia. (in.) 1.6540"
Lock Nut Dia. (mm) 42.00 mm
Coolant Thru Yes
Overall Length (in.) 8.6870"
Overall Length (mm) 220.65 mm
Clamping Hole Length (in.) 0.5365"
