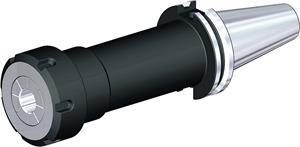

3.00 mm ER40 CAT40 Single-Angle Collet Chuck

  • Item Code: CV40BER40300
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Gage Length (mm) 76.20 mm
Gage Length (in.) 3.0000"
Overall Length (mm) 144.45 mm
Overall Length (in.) 5.6870"
Lock Nut Dia. (in.) 2.4803"
Brand Widia-Erickson
Clamping Hole Length (in.) 0.5365"
Lock Nut Dia. (mm) 63.00 mm
Adapter/Shank/Bore Dia (mm) 44.45 mm
Clamping Hole Length (mm) 13.63 mm
Coolant Thru Yes
Adapter/Shank/Bore Dia (in.) 1.7500"
Collet Series ER40
