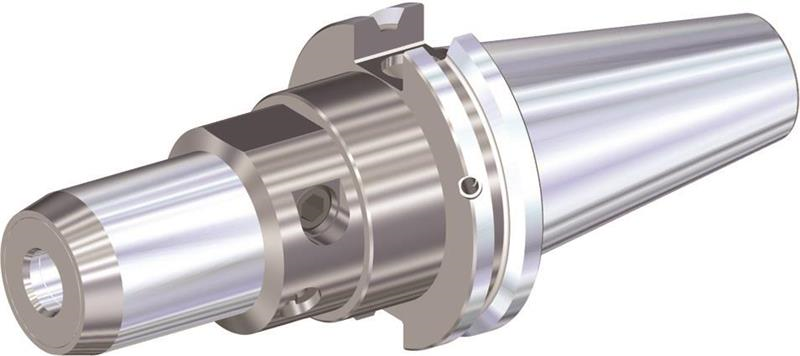

CAT40 Taper Shank, 3/8 Inch Hole Diameter, 29.72mm Nose Diameter, 95.25mm Projection, Hydraulic Tool Holder and Chuck

  • Item Code: CV40BHC038375 W
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adjustment Range 0.3937 Inch
Clamping Length 1.2200 Inch
Overall Length 6.4370 Inch
Shank Length 2.8120 Inch
Usable Length 1.5354 Inch
Product Name Hydraulic Chucks
Shank Diameter 1-3/4 Inch
Brand WIDIA-Erickson
Gage Length 3.7500 Inch
Body Diameter 1.1693 Inch
Hand of Tool Neutral
Shank Style Taper
