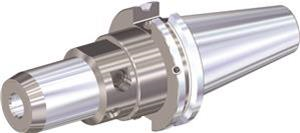

CAT40 Taper Shank, 1/2 Inch Hole Diameter, 31.5mm Nose Diameter, 95.25mm Projection, Hydraulic Tool Holder and Chuck
- Item Code: CV40BHC050375
- Brand: WIDIA-Erickson
- Unit Size: 1
| Body Diameter |
1.2441 Inch |
| Gage Length |
3.7500 Inch |
| Shank Diameter |
1-3/4 Inch |
| Usable Length |
1.5748 Inch |
| Overall Length |
6.4370 Inch |
| Adjustment Range |
0.3937 Inch |
| Product Name |
Hydraulic Chucks |
| Clamping Length |
1.4200 Inch |
| Shank Style |
Taper |
| Shank Length |
2.8120 Inch |
| Brand |
WIDIA-Erickson |
| Hand of Tool |
Neutral |
