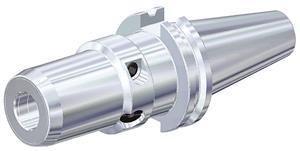

3/4 in. x 4.00 in. CAT40 Taper Shank Hydraulic Chuck

  • Item Code: CV40BHC075400
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Overall Length (mm) 169.85 mm
Adapter/Shank/Bore Dia (mm) 44.45 mm
Brand Widia-Erickson
Shank Type Taper Shank
Coolant Hole Diameter (in.) 0.5365"
Coolant Hole Diameter (mm) 13.63 mm
Coolant Thru Yes
Series CV40
Adapter/Shank/Bore Dia (in.) 1.7500"
Overall Length (in.) 6.6870"
