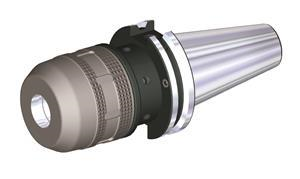

CAT40 1.000 Inch x 3.74 Inch Gage Length Form B/AD HPMC Milling Chuck

  • Item Code: CV40BHPMC100374
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapt/Shank/Bore Diameter WKPS F 1
Adapter Style Machine Side-EPP SKG37ANSICATInThdStBADw/CnDCnC
Adapter/Shank/Bore Diameter (mm) 44.450
Adjustment Range (Inch) 0.7874
Body Diameter 1 Workpce Side (In) 2.4016
Body Diameter 1 Workpce Side (mm) 61.000
Body Diameter Machine Side (mm) 63.500
Flange-Front End Dist (In) 2.9906
Flange-Front End Dist (mm) 75.960
Gage Length 1 (Inch) 3.7402
Gage Length 1 (Metric) 95.000
Max Interference Diameter (Inch) 1.7500
Overall Length (Inch) 6.4272
Overall Length (Metric) 163.250
Stop Screw ID Drive Size 2.5 mm & 5 mm
System Size Machine Side CV40
Usable Length (Inch) 2.9906
Usable Length (Metric) 75.960
Adapt/Shank/Bore Diameter WKPS (In) 1.0000
Adapter Size Machine Side-EPP 0400
Units of Tool (Extract) IN - Inch
Adapter/Shank/Bore Diameter (Fractional) 1 3/4
Adjustment Range (mm) 20.000
Adapter Type Machine Side-EPP SKG - Steep Taper
Body Diameter Machine Side (In) 2.5000
Brand WIDIA-Erickson
Adapter/Shank/Bore Diameter (Inch) 1.7500
Adapt/Shank/Bore Diameter WKPS (mm) 25.400
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Type Machine Side Taper Shank
Flange Length (Metric) 15.860
Shank Length (Inch) 2.8122
Adapter Size Workpiece Side 1000
Shank Length (Metric) 71.430
