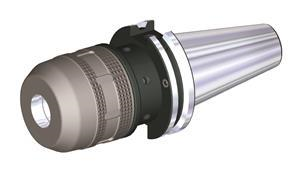

CAT40 1.250 Inch x 4.72 Inch Gage Length Form B/AD HPMC Milling Chuck

  • Item Code: CV40BHPMC125472
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Flange Length (Metric) 15.860
Flange-Front End Dist (In) 3.9748
Flange-Front End Dist (mm) 100.960
Gage Length 1 (Inch) 4.7244
Gage Length 1 (Metric) 120.000
Overall Length (Inch) 7.4114
Overall Length (Metric) 188.250
Shank Length (Inch) 2.8122
Shank Length (Metric) 71.430
Usable Length (Inch) 4.7244
Usable Length (Metric) 120.000
Adapter Style Machine Side-EPP SKG37ANSICATInThdStBADw/CnDCnC
Body Diameter 1 Workpce Side (In) 2.7559
Body Diameter 1 Workpce Side (mm) 70.000
Adapt/Shank/Bore Diameter WKPS (mm) 31.750
Adapt/Shank/Bore Diameter WKPS (In) 1.2500
Adapter/Shank/Bore Diameter (Inch) 1.7500
Brand WIDIA-Erickson
Adapter Size Machine Side-EPP 0400
Adapter Type Machine Side-EPP SKG - Steep Taper
Adapter/Shank/Bore Diameter (Fractional) 1 3/4
Stop Screw ID Drive Size 2.5 mm & 5 mm
Units of Tool (Extract) IN - Inch
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Type Machine Side Taper Shank
System Size Machine Side CV40
Adapt/Shank/Bore Diameter WKPS F 1 1/4
Adapter/Shank/Bore Diameter (mm) 44.450
Adjustment Range (mm) 20.000
Body Diameter Machine Side (mm) 63.500
Max Interference Diameter (Inch) 1.7500
Adjustment Range (Inch) 0.7874
Body Diameter Machine Side (In) 2.5000
Adapter Size Workpiece Side 1250
