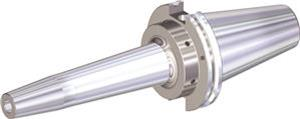

CAT40 20mm I.D. x 152mm Gage Length Shrink-Fit Form A/BD Toolhoder
- Item Code: CV40BHPVTT20M600
- Brand: WIDIA-Erickson
- Unit Size: 1
| Body Diameter |
32.99 MM |
| Gage Length |
152.40 MM |
| Hole Diameter (Decimal) |
0.7870 Inch |
| Hole Diameter (Metric) |
20.00 MM |
| Overall Length |
220.65 MM |
| Shank Length |
71.438 MM |
| Shank Style |
Taper |
| Clamping Length |
41.00 MM |
| Hand of Tool |
Neutral |
| Flange Length |
15.87 MM |
| Brand |
WIDIA-Erickson |
| Unit of Measure |
Metric |
| RPM |
15000 |
| Adjustment Range |
10.00 MM |
| Product Name |
Shrink Fit Toolholder |
