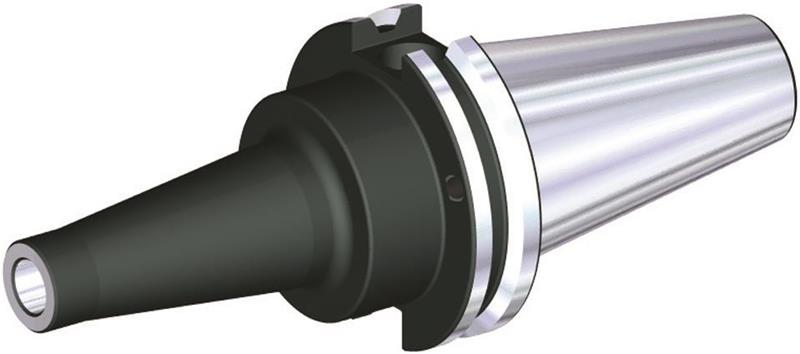

CV40 M16 Thread Screw-On Taper Shank End Mill Adapter

  • Item Code: CV40BST16M386
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapter Size Workpiece Side 0290
Beta Taper End Length (In) 2.1700
Beta Taper End Length (mm) 55.000
Body Diameter 1 Workpce Side (In) 1.1400
Body Diameter 1 Workpce Side (mm) 29.000
Body Diameter 2 Workpce Sde (In) 1.3400
Body Diameter 2 Workpce Sde (mm) 34.000
Centerline Height (Inch) 0.0000
Connection Bore Diameter (Inch) 0.6693
Connection Bore Diameter (mm) 17.000
Flange-Front End Dist (In) 3.1100
Flange-Front End Dist (mm) 78.950
Gage Length 1 (Inch) 3.8600
Gage Length 1 (Metric) 98.000
Overall Length (Inch) 6.5470
Overall Length (Metric) 166.290
Shank Length (Inch) 2.8120
Usable Length (Inch) 0.3900
Usable Length (Metric) 10.000
Usable Length 2 (Inch) 2.3230
Usable Length 2 (Metric) 59.000
Adapter Style Machine Side-EPP SKG37ANSICATInThdStBADw/CnDCnC
Shank Length (Metric) 71.425
Adapter Size Machine Side-EPP 0400
Adapter Type Machine Side-EPP SKG - Steep Taper
Adapter/Shank/Bore Diameter (Fractional) 1 3/4
Brand WIDIA-Erickson
Coolant Supply Yes
Max RPM 15000
Units of Tool (Extract) MM - Metric
Flange Length (Metric) 15.875
Body Diameter Machine Side (In) 2.5000
Centerline Height (Metric) 0.000
Adapter/Shank/Bore Diameter (mm) 44.450
Body Diameter Machine Side (mm) 63.500
Max Interference Diameter (Inch) 1.7500
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Type Machine Side Taper Shank
Adapter/Shank/Bore Diameter (Inch) 1.7500
System Size Machine Side CV40
