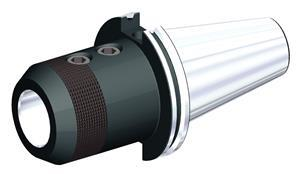

1/2 in. x 2.50 in. Taper Shank End Mill Adapter
- Item Code: CV40EM025250
- Brand: WIDIA
- Unit Size: 1
Description
The tools are either prebalanced to a high specification or balanced-by-design and will perform effectively up to 15,000 RPM.
Tech Specs
Back To Top| Clamping Hole Length Metric | 63.50 mm |
|---|---|
| Clamping Hole Length Inch | 2.5000" |
| Gage Length Inch | 2.5000" |
| Overall Length Metric | 131.75 mm |
| Body Diameter Metric | 19.82 mm |
| Adapter Type | Taper Shank |
| Body Diameter Inch | 0.7800" |
| Metric Diameter | 6.35 mm |
| Decimal Diameter | 0.2500" |
| Fractional Diameter | 1/4" |
| Gage Length Metric | 63.50 mm |
| Brand | WIDIA |
| Overall Length Inch | 5.1870" |
| Series | CV40 |
