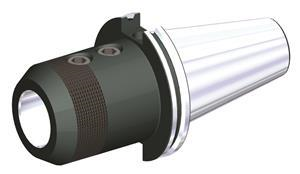

1 Inch Hole Diameter, 5/8-11 Drawbar Thread, CAT40 Taper Shank End Mill Holder

  • Item Code: CV40EM100400
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Clamp Screw Thread Size 3/4-10 UNC
Flange-Front End Dist (In) 3.2500
Overall Length (Inch) 6.6870
Overall Length (Metric) 169.850
Usable Length (Metric) 82.600
Body Diameter Machine Side (In) 2.5000
Flange Length (Metric) 15.875
System Size Machine Side CV40
Adapter Type Machine Side Taper Shank
Adapter/Shank/Bore Diameter (mm) 44.450
Usable Length (Inch) 3.2500
Adapt/Shank/Bore Diameter WKPS F 1
Adapter Size Machine Side-EPP 0400
Adapter Size Workpiece Side 1000
Adapter Style Machine Side-EPP SKG31ANSICAT InThdStyADw/CntC
Shank Length (Inch) 2.8120
Units of Tool (Extract) IN - Inch
Adapt/Shank/Bore Diameter WKPS (In) 1.0000
Adapter Style Machine Side CV-Caterpillar V-Flange In
Body Diameter Machine Side (mm) 63.500
Gage Length 1 (Inch) 4.0000
Adapt/Shank/Bore Diameter WKPS (mm) 25.400
Body Diameter 1 Workpce Side (In) 2.0000
Max Interference Diameter (Inch) 1.7500
Adapter Type Machine Side-EPP SKG - Steep Taper
Body Diameter 1 Workpce Side (mm) 50.800
Flange-Front End Dist (mm) 82.550
Adapter/Shank/Bore Diameter (Inch) 1.7500
Brand WIDIA-Erickson
Clamp Screw ID Drive Size 3/8
Adapter/Shank/Bore Diameter (Fractional) 1 3/4
Gage Length 1 (Metric) 101.600
Shank Length (Metric) 71.425
